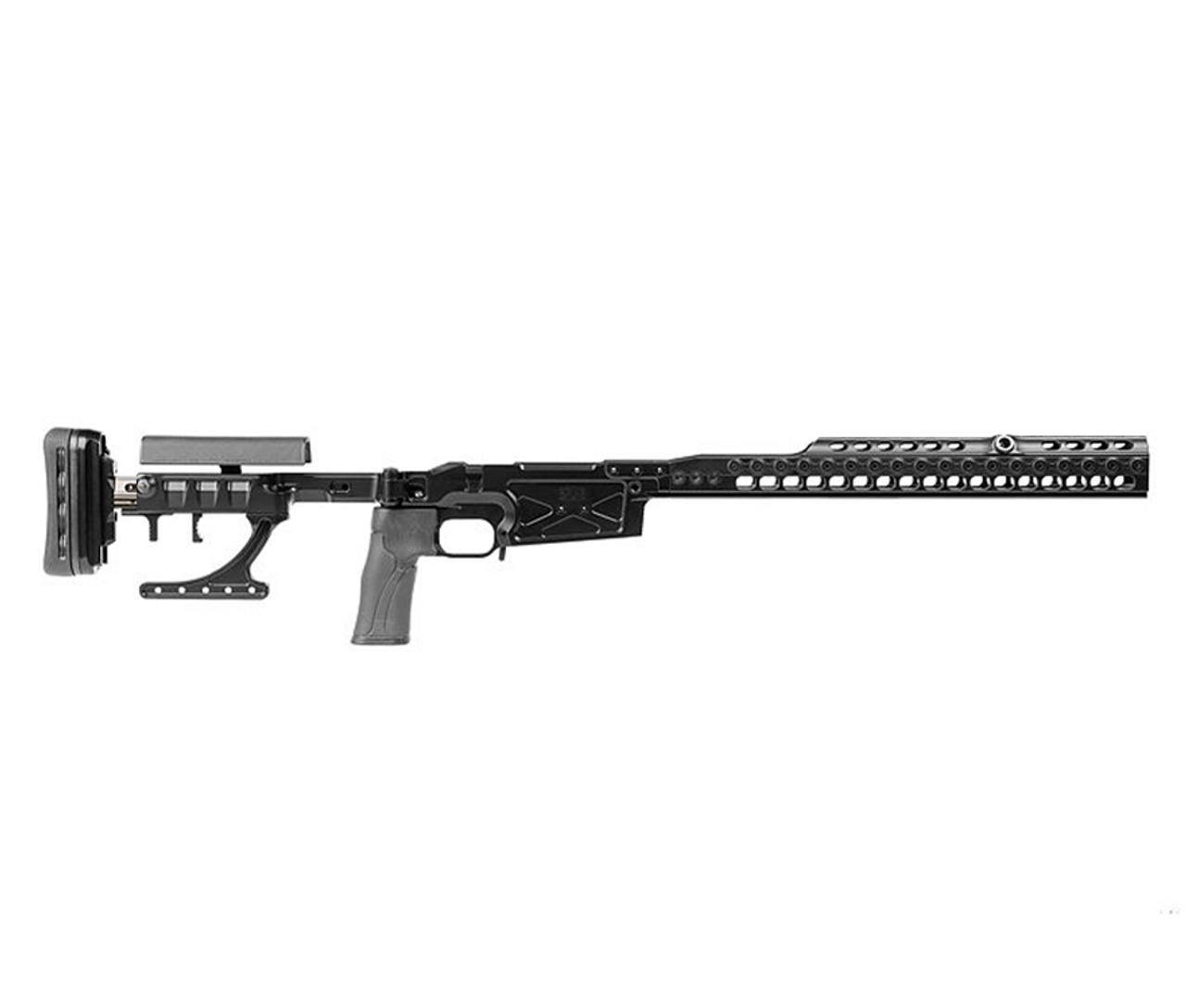

SPUHR CHASSIS R700 LCP SA, BLACK, 16″

16″ HBAR Forend for bull barrels with profiles exceeding a Heavy Varmint profile. Max 32 mm/1.25″ diameter. Does not have Spuhr Interfaces™ along the top of the forend.

Designed for Remington 700 clones, such as the Cadex Defense CDX-R7 and similar actions, where the firing pin cocking piece has a lower travel than a standard Remington 700.

Will also fit short actions from:
BAT Machine
Curtis Custom
KS Arms (Note: low bolt stops may require modification for clearance)
Surgeon Rifles
Terminus
Zermatt Arms/Bighorn Arms

Specifications:
Length: 975 mm/38.4” (685 mm/27.0” folded)
LOP: 330 mm/13″ (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.37 kg/5.22 lb
Forend: 406 mm/16.0” HBAR
Color: Black

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:
Aircraft grade aluminum alloy construction
Folding stock assembly with adjustment for solid lockup
Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
Height and length-adjustable cheek piece
Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
16” Spuhr Interface™ HBAR forend with integrated ARCA Swiss rail and QD sling cups
AICS pattern magwell – not for AI AX magazines
Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt.
Max barrel diameter at the shank: 32 mm/1.25″.
Clearance between front of action and handguard is approximately 130 mm/5.11″ and may require the use of a 38 mm/1.5″ high mount.
