Description

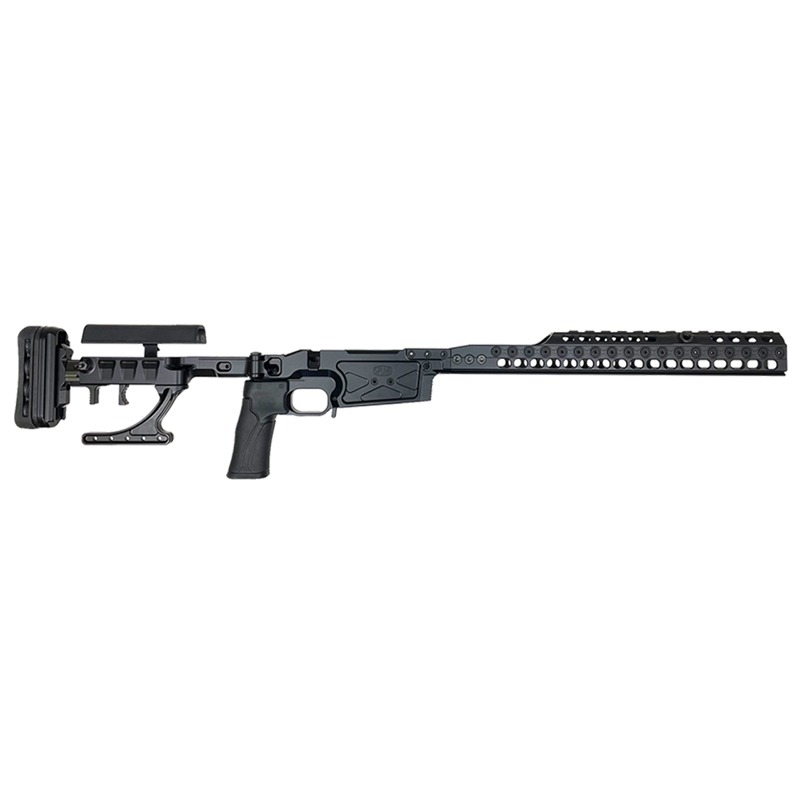

SPUHR CHASSIS REM 700 CIP, BLACK, 16″

16″ Forend for barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Specifications:
Length: TBD
LOP: 330 mm/13″ (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: TBD
Forend: 406 mm/16.0”
Color: Black

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:
Aircraft grade aluminum alloy construction
Folding stock assembly with adjustment for solid lockup
Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
Height and length-adjustable cheek piece
Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
16” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
AICS pattern magwell
Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs will require fitting.
Max barrel diameter at the shank: 32 mm/1.25″.
Clearance between front of action and handguard is approximately 130 mm/5.11″ and may require the use of a 38 mm/1.5″ high mount.
