Description

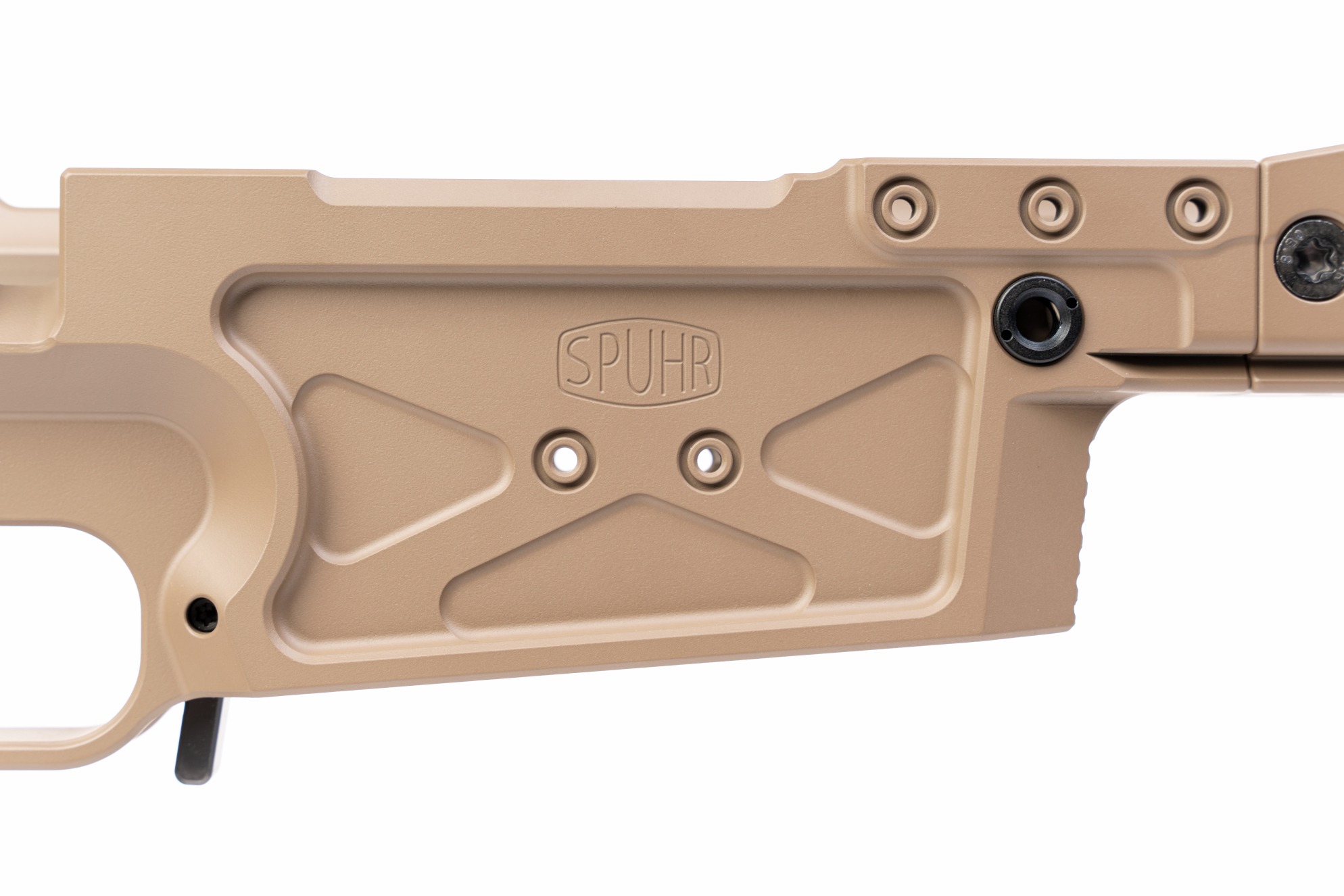

SPUHR CHASSIS REM 700 SA, FDE, 16″

16″ Forend for barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Will also fit short actions from:

• Impact Precision
• Mack Bros
• Vudoo Gun Works

Specifications:
Length: 975 mm/38.4” (685 mm/27.0” folded)
LOP: 330 mm/13″ (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.37 kg/5.22 lb
Forend: 406 mm/16.0”
Color: Cerakote Flat Dark Earth

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:

• Aircraft grade aluminum alloy construction
• Folding stock assembly with adjustment for solid lockup
• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
• Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
• 16” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
• AICS pattern magwell – not for AI AX magazines
• Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs will require fitting.
Max barrel diameter at the shank: 32 mm/1.25″.
Clearance between front of action and handguard is approximately 130 mm/5.11″ and may require the use of a 38 mm/1.5″ high mount.
